The chin spike is certainly an interesting feature...
While doing my
Oceans of Kansas book, I was able to visit the collections of the Academy of Natural Sciences of Philadelphia (mostly to look at the type specimen of
Elasmosaurus platyurus...)

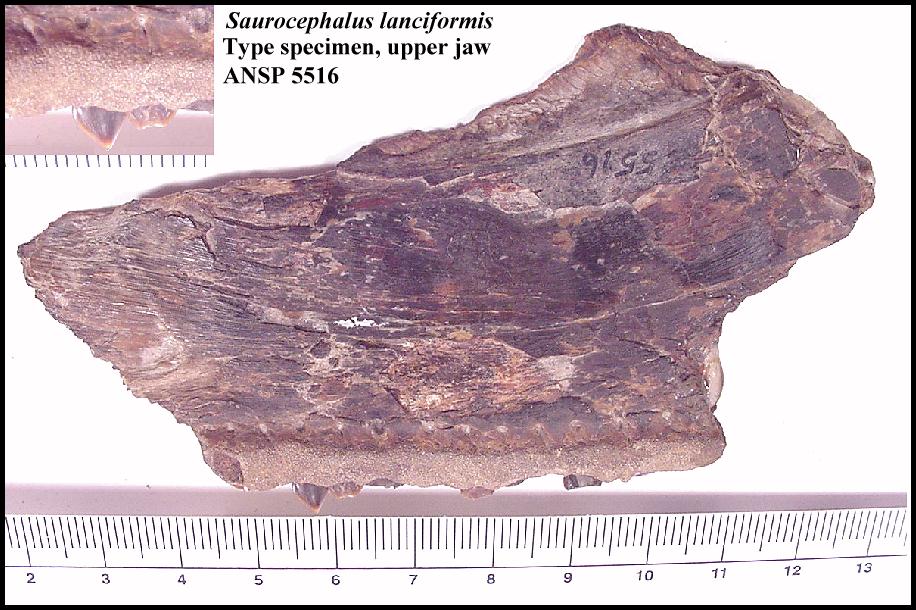

I was also able to see and photograph the type specimen (and only remaining fossil brought back by the Lewis and Clark expedition, 1804-1805)...
It was collected from the upper Niobrara Formation on the banks of the Missouri River in northwestern Iowa and later described by a Dr. Richard Harlan (1824) as the jaw of a reptile,
Saurocephalus lanciformis...

Of course it wasn't a reptile.... but rather the upper jaw of a fish closely related to what would eventually be called

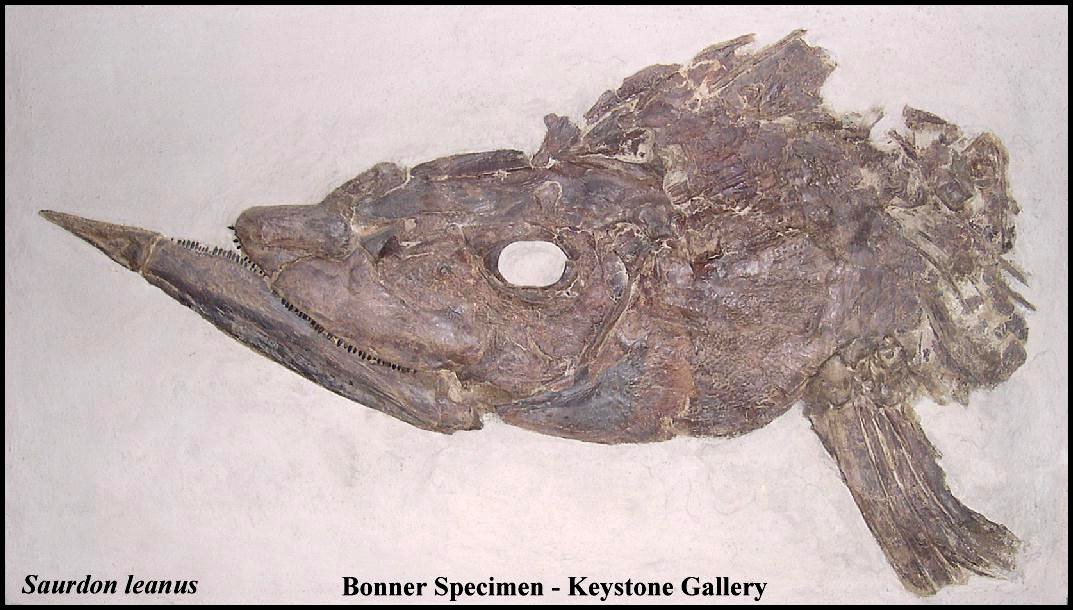

Saurodon leanus Hay 1830. Although Hay recognized that the two genera were related, he tried to avoid further confusing his fish with Harlan's "reptile."
It was another example of Harlan's classic mistakes (e.g.
"Ichthyosaurus" missouriensis (1834) =
Mosasaurus missouriensis and
Basilosaurus (1834)... which is not a reptile, let alone the "King Reptile" - it is a primitive whale)...
More here:
http://www.oceansofkansas.com/Saurodon.htmlRegards,
Mike
